Avalon 1066 Power Supply Requirements and Setup: A Comprehensive Guide for Mining Operators
The Avalon 1066 Miner is a powerhouse in the world of Bitcoin mining, offering exceptional performance and efficiency for both large-scale operations and smaller setups. As with any high-performance mining rig, understanding its power supply requirements and proper setup is critical to maximizing its potential and ensuring long-term reliability. This guide will walk you through everything you need to know about powering and configuring your Avalon 1066, from technical specifications to practical setup tips.

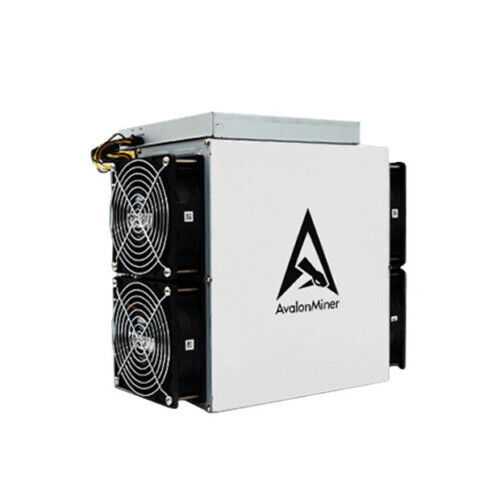

Introduction to the Avalon 1066 Miner
Before diving into power supply specifics, it’s essential to understand what makes the Avalon 1066 a standout choice for miners. Designed by Canaan, a leader in ASIC mining technology, the Avalon 1066 features 342 advanced 16nm chips that deliver an impressive hashrate of 50 TH/s for SHA256 algorithm mining. This makes it an ideal solution for mining Bitcoin (BTC) and Bitcoin Cash (BCH), offering flexibility and efficiency for miners looking to optimize their operations.
The miner’s robust thermal management system, powered by four high-performance 12038 cooling fans, ensures stable operation even in demanding environments. With a power consumption of 3250W, the Avalon 1066 strikes a balance between performance and energy efficiency, making it a cost-effective choice for professional miners.
Power Supply Requirements for the Avalon 1066
One of the most critical aspects of setting up the Avalon 1066 is ensuring it receives adequate and stable power. Here’s a detailed breakdown of its power supply requirements and how to meet them:
1. Input Voltage and Current
The Avalon 1066 operates on a standard 12V DC input. However, it requires a high-wattage power supply unit (PSU) capable of delivering consistent power to support its 3250W consumption. Most miners use server-grade PSUs or specialized mining PSUs designed for high-performance ASICs.
- Input Voltage Range: The miner can operate within a voltage range of 11.6V to 13.0V. Staying within this range is crucial to avoid underpowering or overloading the device.
- Current Demand: At full load, the Avalon 1066 draws approximately 270A of current. Ensure your PSU can handle this load without overheating or causing voltage drops.
2. Power Supply Unit (PSU) Selection
Choosing the right PSU is vital for the Avalon 1066’s performance and longevity. Here are some key considerations:
- Wattage: Select a PSU with a wattage rating slightly higher than the miner’s consumption (e.g., 3500W+) to account for inefficiencies and potential power spikes.
- Efficiency: Look for PSUs with 80 Plus Gold or Platinum certification to minimize energy losses and reduce operating costs.
- Connectors: Ensure the PSU has sufficient PCIe connectors to power the miner’s hashboards. The Avalon 1066 typically requires multiple 6-pin or 8-pin PCIe connectors.
3. Electrical Infrastructure
Your facility’s electrical infrastructure must support the miner’s power demands:
- Circuit Capacity: Dedicate a 30A circuit to each Avalon 1066 to ensure stable power delivery. Avoid daisy-chaining multiple miners on a single circuit to prevent tripping breakers.
- Voltage Stability: Use a voltage regulator or uninterruptible power supply (UPS) to protect the miner from voltage fluctuations or power outages.
- Cooling for PSUs: High-wattage PSUs generate significant heat. Ensure proper ventilation and cooling for your PSUs to maintain their efficiency and lifespan.
Setting Up the Avalon 1066: A Step-by-Step Guide
Once you’ve addressed the power supply requirements, follow these steps to set up your Avalon 1066 for optimal performance:
Step 1: Unboxing and Inspection
- Carefully unbox the miner and inspect it for any shipping damage.
- Verify that all components, including the power cables and Ethernet cable, are included.

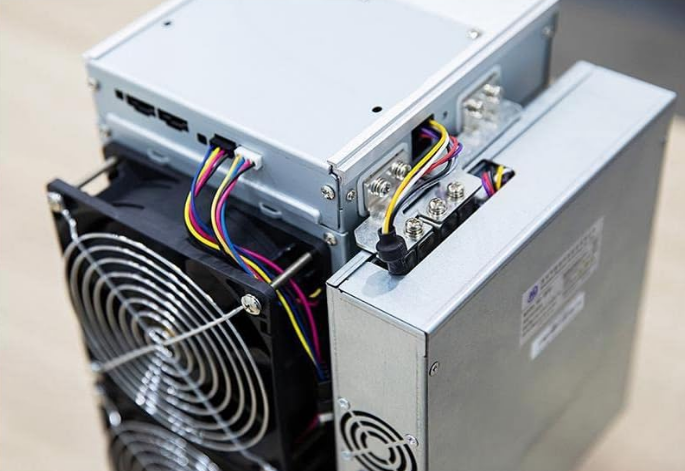

Step 2: Connecting the PSU
- Connect the PSU to the miner using the appropriate PCIe connectors.
- Double-check that all connections are secure to prevent power interruptions or overheating.
Step 3: Network Configuration
- Connect the miner to your network using the provided Ethernet cable.
- Access the miner’s web interface via its IP address to configure mining pool settings and monitor performance.
Step 4: Powering On and Testing
- Turn on the PSU and monitor the miner’s startup process.
- Check the web interface to ensure the miner is hashing at the expected rate and is connected to the mining pool.
Step 5: Cooling and Maintenance
- Place the miner in a well-ventilated area with adequate airflow.
- Regularly clean the cooling fans and inspect the miner for dust buildup to maintain optimal performance.
Advantages of the Avalon 1066
The Avalon 1066 offers several advantages that make it a top choice for miners:
- Versatile Cryptocurrency Mining: With support for both BTC and BCH, the Avalon 1066 allows miners to diversify their portfolios and adapt to market conditions.
- Proven Reliability: Backed by Canaan’s expertise, the miner is built for long-term, consistent performance.
- Efficient Cooling System: The advanced thermal management system ensures stable operation even in high-temperature environments.
- Compact Design: Its small footprint makes it easy to deploy in various setups, from large farms to home operations.
- Future-Ready Architecture: The 16nm chip technology provides a solid foundation for sustained mining as cryptocurrency markets evolve.
Practical Tips for Maximizing Your Avalon 1066’s Performance
- Monitor Power Consumption: Use a wattmeter to track your miner’s energy usage and ensure it’s operating within the expected range.
- Optimize Cooling: Consider additional cooling solutions, such as external fans or air conditioning, in hot climates.
- Regular Maintenance: Schedule routine inspections to replace worn-out components, such as fans or thermal paste, and prevent unexpected downtime.
- Stay Updated: Keep your miner’s firmware up to date to benefit from performance improvements and bug fixes.
Conclusion
The Avalon 1066 Miner is a powerful and reliable tool for Bitcoin and Bitcoin Cash mining, but its performance hinges on proper power supply and setup. By understanding its power requirements, selecting the right PSU, and following best practices for installation and maintenance, you can maximize your miner’s efficiency and profitability. Whether you’re a seasoned mining operator or new to the industry, the Avalon 1066 offers a robust solution for achieving your mining goals. With its cutting-edge technology and proven reliability, this miner is a worthy investment for anyone looking to succeed in the competitive world of cryptocurrency mining.
